Automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.
Fully automatic Double Side self-adhesive labeling machine
Double side labeling machine suitable for flat bottles and round bottles share
For self adhesive type label
Bottle sizes are adjustable
Product Description
Automatic double side front and back self adhesive labelling machine for bottles is design to handle a wide range of self-adhesive labelling applications with speed and accuracy in either single, twin or tri-labelling head configuration can apply front, back, partial wrap or full wrap labels as well as tamper evident or promotional top labels.
Functions
Independent dual label head design
Two label dispensers operates independently for one side labeling or operate simultaneously for two side labeling which allows different size of label application on either side, An optional wrap station is offered for partial wrap or full wrap labels as well as tamper evident or promotional top labels.
Front and Back sticker labeler machine is equipped with a chain aligner system for product orientation, ensuring correct positioning of the containers before the label is applied.
Precise positioning system
Equipped with a chain alignment system for product orientation to ensure accurate container position before labeling.
The container position is adjusted by a spring-mounted electric chain, which then enters under the head gripper and is released to position.
The head gripper is mounted on a vertical stainless steel spindle system for quick position adjustment according to needs.
High-quality configuration
The machine body is made of stainless steel, and the parts are anodized for strong durability.
Equipped with internationally renowned electronic components, servo motor drive, power-assisted winding device, PLC control system and user-friendly human-machine interface (HMI), it is easy to operate and has high stability.
Application
Applicable bottle type: surface labeling of square, flat and round bottles.
Application industry: widely used in medicine, daily chemicals, food, cultural supplies and other fields.
Advantages
1. Automatically label 1 or 2 side, or wrapping around on round bottle(optional).
2. Adopting PLC control unit
3. Use easy operation large touch screen
4. Adopt label sensor & object sensor
5. Can be equipped with coding machine or printing machine, print clearly. (optional )
6. High labeling speed and high precision
Available Options
- Hot stamp printing coder with base (prints characters directly onto the label)
- Clear Label Sensors (capable of detecting transparent labels)
- Wraparound station

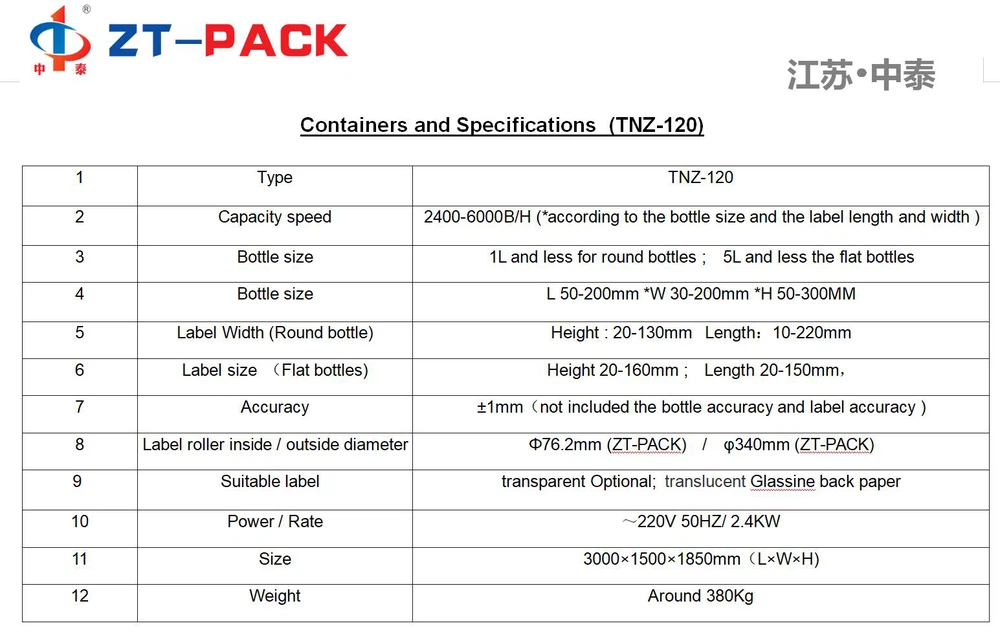

Specifications
Workflow Description
Bottle in→ check → labeling→stroke label → finished products
When bottle in labeling machine , firstly cheaking position.The bottle correction before enter the pressure is mechanism,Pressure is mechanism of action is to make the bottle can stable, no any dithering to walk ahead.stick mark position, through the sensor detection signal start out standard action, starting labeling .When labeled bottle forward to stroke, stroke label will on both sides of the label on the bottle to stick, then complete the labeling process.
Details Pictures
